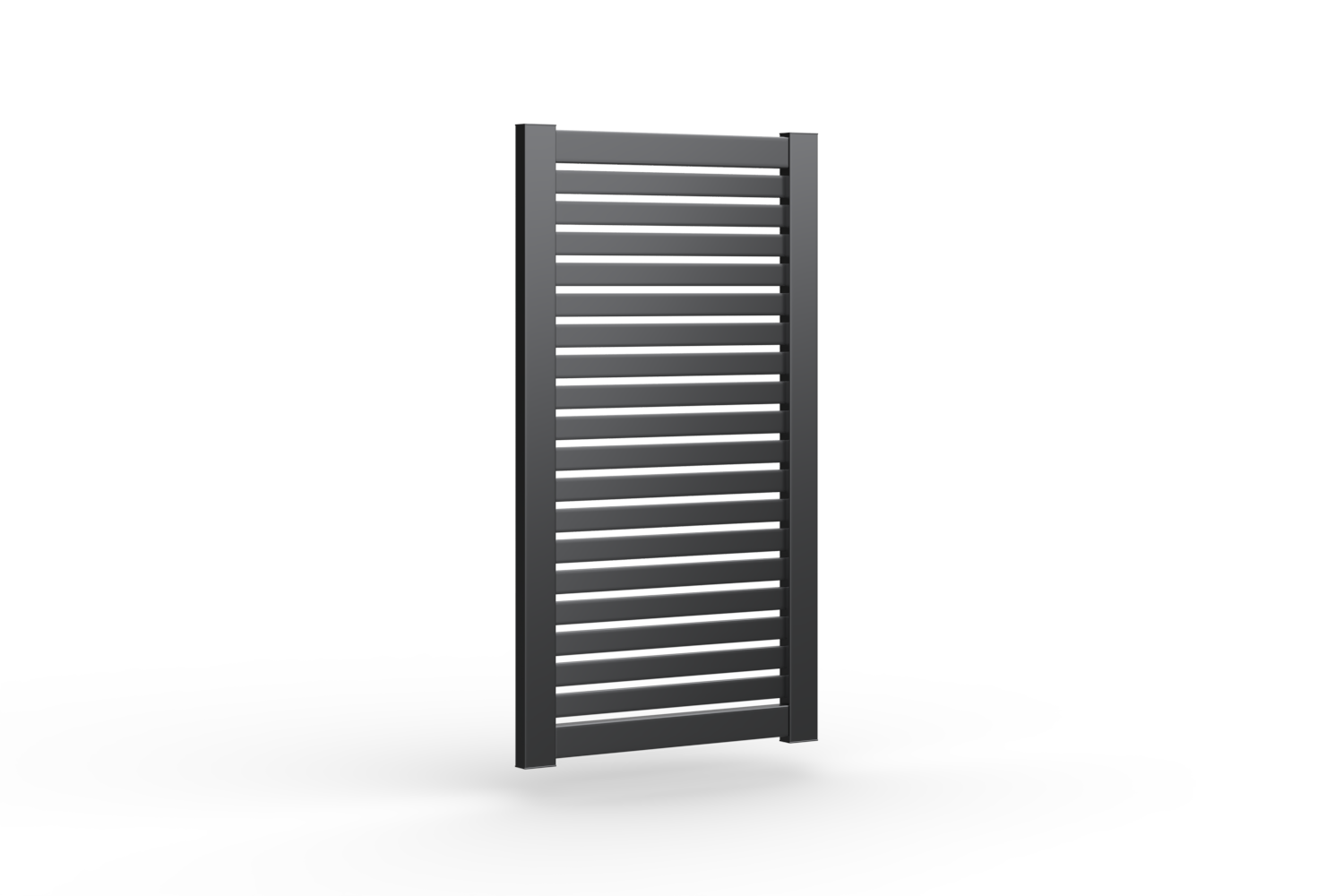

Sola Horizontal Slat
The matching gate to our Sola Horizontal Slat panels. The slat gate is a great option for higher wind areas where looks matter.
For a vertical infill see our Luna gate.
The GateKit™ Engineered System
This gate is engineered using The Gate Group's next generation GateKit™ system.
The system is designed to be versatile, easy to install and to provide a consistent look across gates and fence panels.
Gates are precision machined in New Zealand utilising the latest in CAD design and CNC manufacturing technology. Once machined they are wrapped and dispatched from our factory as components, ready for final assembly on site.
GateKit™ is engineered to support high torsional loads in the following configurations:
| Mechanism | Max Length | Max Height |
|---|---|---|
| Sliding | 6m | 2m |
| Single Swing | 3m | 2m |
| Double Swing | 6m | 2m |
| Pedestrian | 2m | 2m |
| Cantilever | 6m | 2m |
Rail and Mullion Sizing
| Mechanism | Profile | Load | Support |
|---|---|---|---|
| Sliding | GateKit™ Engineered Profile | 100mm x 55mm x 2mm | 90mm x 45mm x 2mm |
| Single Swing | GateKit™ Engineered Profile | 100mm x 55mm x 2mm | 90mm x 45mm x 2mm |
| Double Swing | GateKit™ Engineered Profile | 100mm x 55mm x 2mm | 90mm x 45mm x 2mm |
| Pedestrian | GateKit™ Engineered Profile | 100mm x 55mm x 2mm | 90mm x 45mm x 2mm |
| Cantilever | GateKit™ Engineered Profile | 100mm x 55mm x 2mm | 90mm x 45mm x 2mm |
The GateKit™ Engineered Profile
The GateKit™ Engineered Profile used in our rails and mullions is a proprietary engineered extrusion designed to deliver high torsional strengths specifically for gate applications.
The profile vastly outperforms box section and is designed to be versatile in a variety of configurations.
