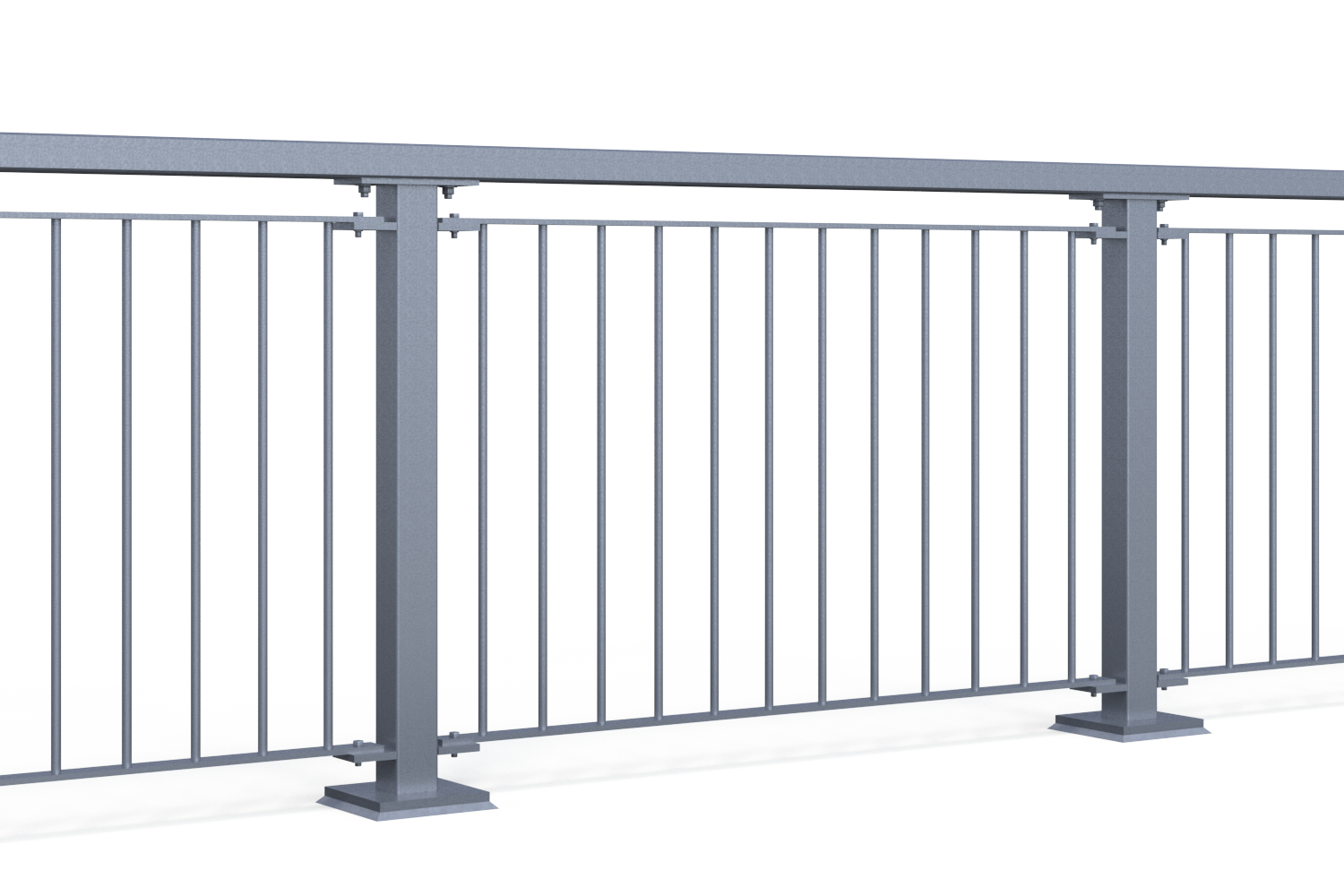

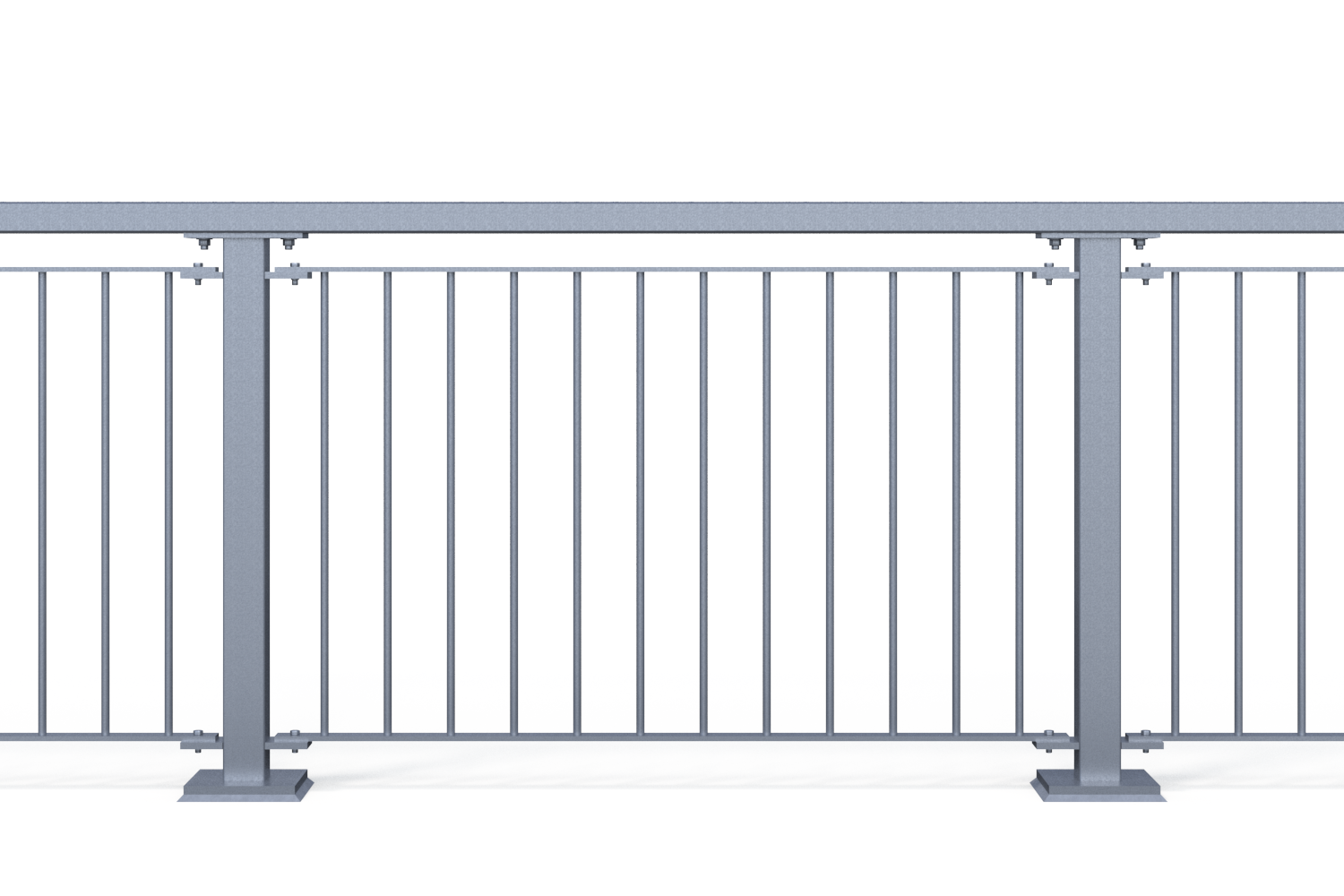

NZTA Infrastructure Panel

Specialised panel designed as the basis for complying with the requirements of the NZTA Bridge Manual (SP/M/022)

Material:

NZ Sourced Hot Dip Galvanised Steel

Finish:

Optional powdercoat

Height:

1.2m to 1.4m

Width:

To design specification

Raking:

Yes - Custom Manufactured

Balustrade:

Yes - NZTA Compliant

Posts:

100mm x 100mm x 6mm

Top Rail:

152mm x 76mm x 5mm

Picket Size:

20mm ⌀

Picket Centers:

100mm

Custom Sizes:

Yes - Full Customisation

Warranty:

5 years

A highly specialised panel designed as the basis for complying with the requirements of the NZTA Bridge Manual (SP/M/022).

Manufactured in New Zealand from locally sourced steel.

The Gate Group is a Steel Construction New Zealand member.

Certification

The Gate Group has all the certification to be produce NZTA compliant panels for roading and infrastructure.

NZ sourced steel with full traceability and mill certification.

NZ certified welders.

NZ qualified welding certifier on staff.

NZ galvanising and certification.
