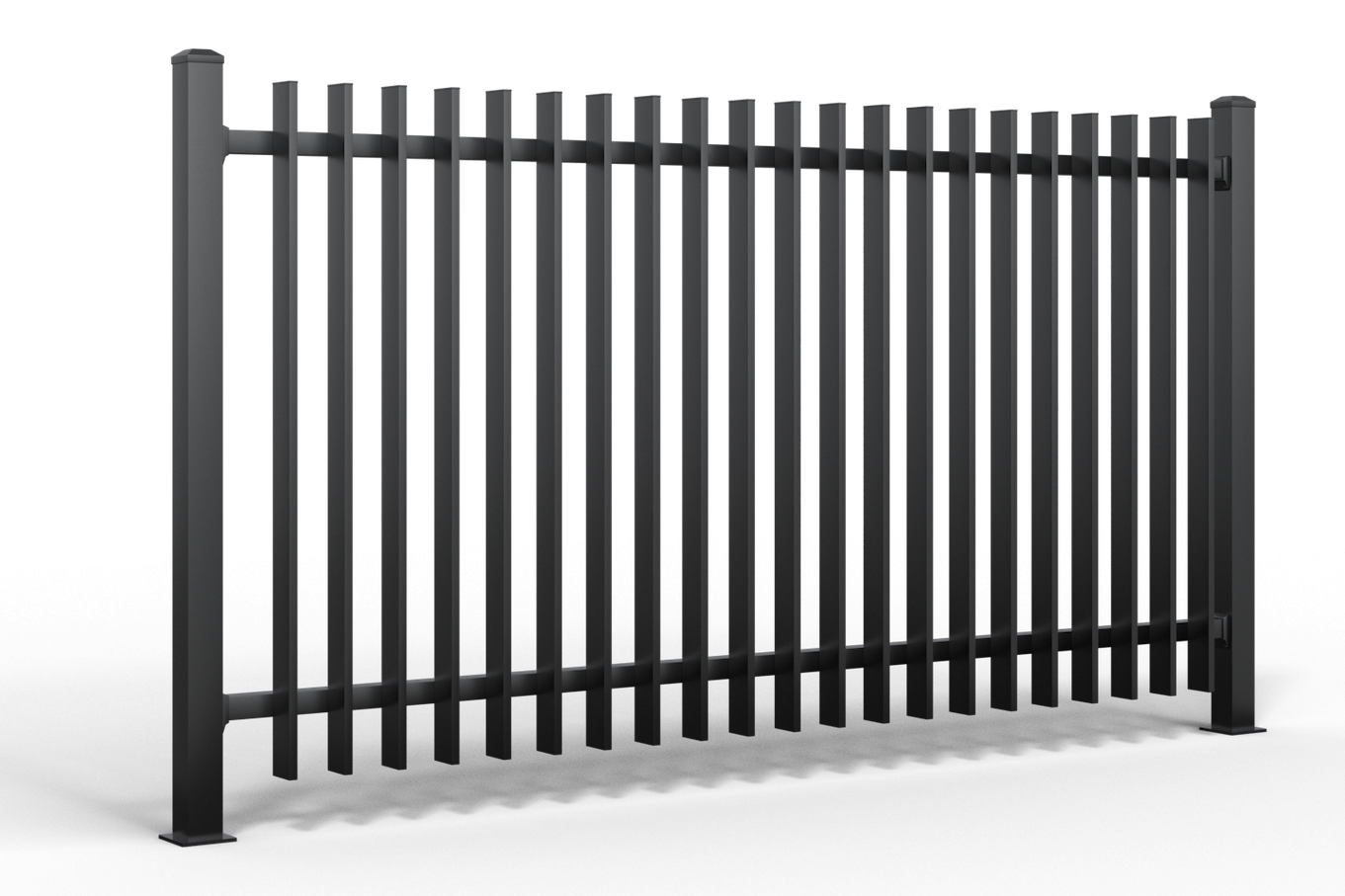

Astra Architectural Fence Panel

A modern architectural grade panel with strong lines and a contemporary look. Designed to accentuate verticals in complementary structures.
Material:
Powdercoated Aluminium
Height:
1.2m, 1.5m, 1.8m
Width:
2.4m
Raking:
Yes - 15 degrees
Balustrade:
Yes - Compliant
Pool:
Yes - Compliant
Rails:
Two - Top, Bottom
Rail Size:
40mm x 40mm x 2mm

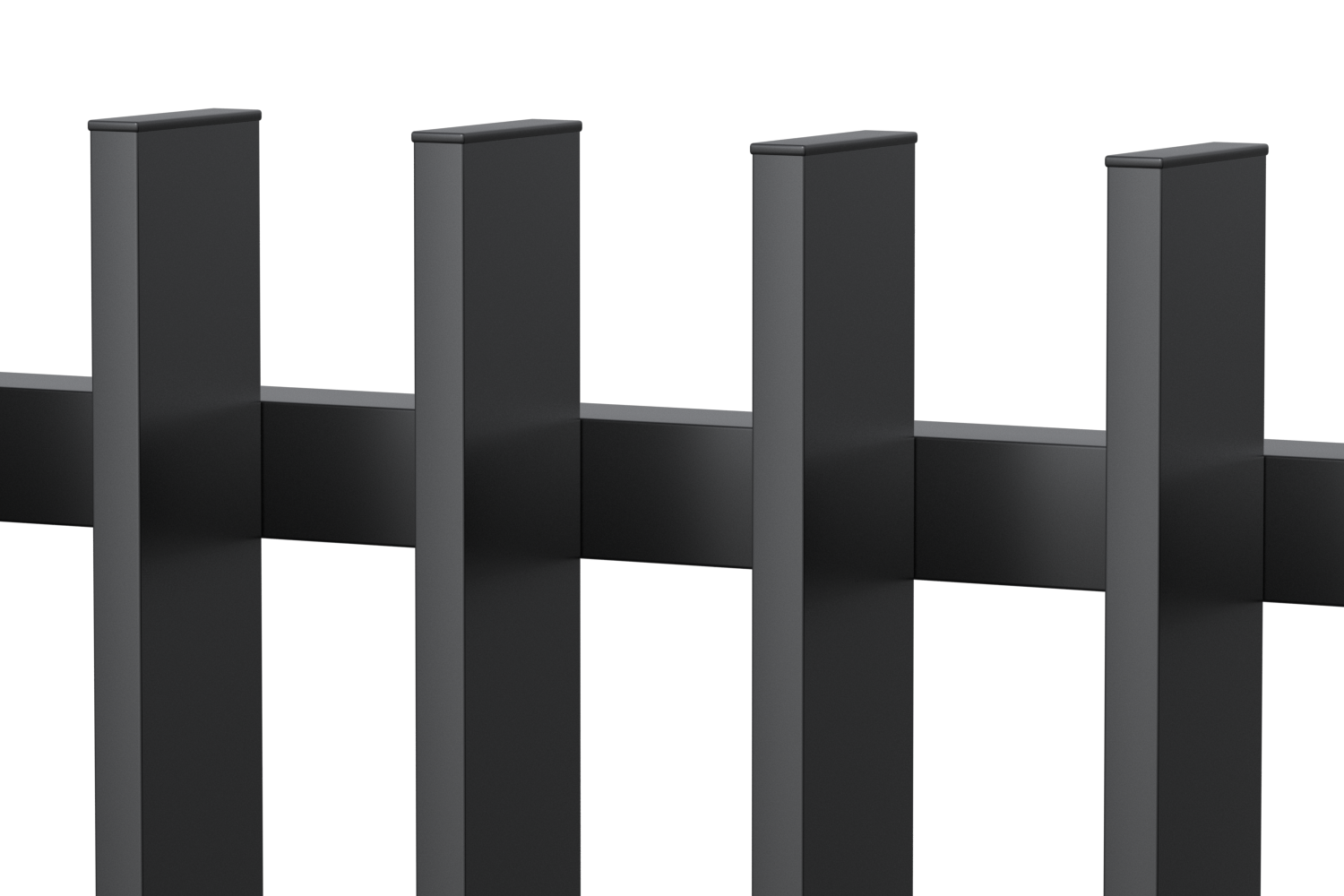

Picket Size:
25mm x 25mm x 1.2mm
Picket Centers:
65mm
Custom Sizes:
Yes - Available
Matching Gate:
Yes - Available
Warranty:
5 years

Astra Architectural Fence Panel

Astra is striking modern fence panel designed to accentuate verticals in complementary structures. Equally suited to a multi-home residential setting as well as high-end architectural homes. It is a feature in its own right.

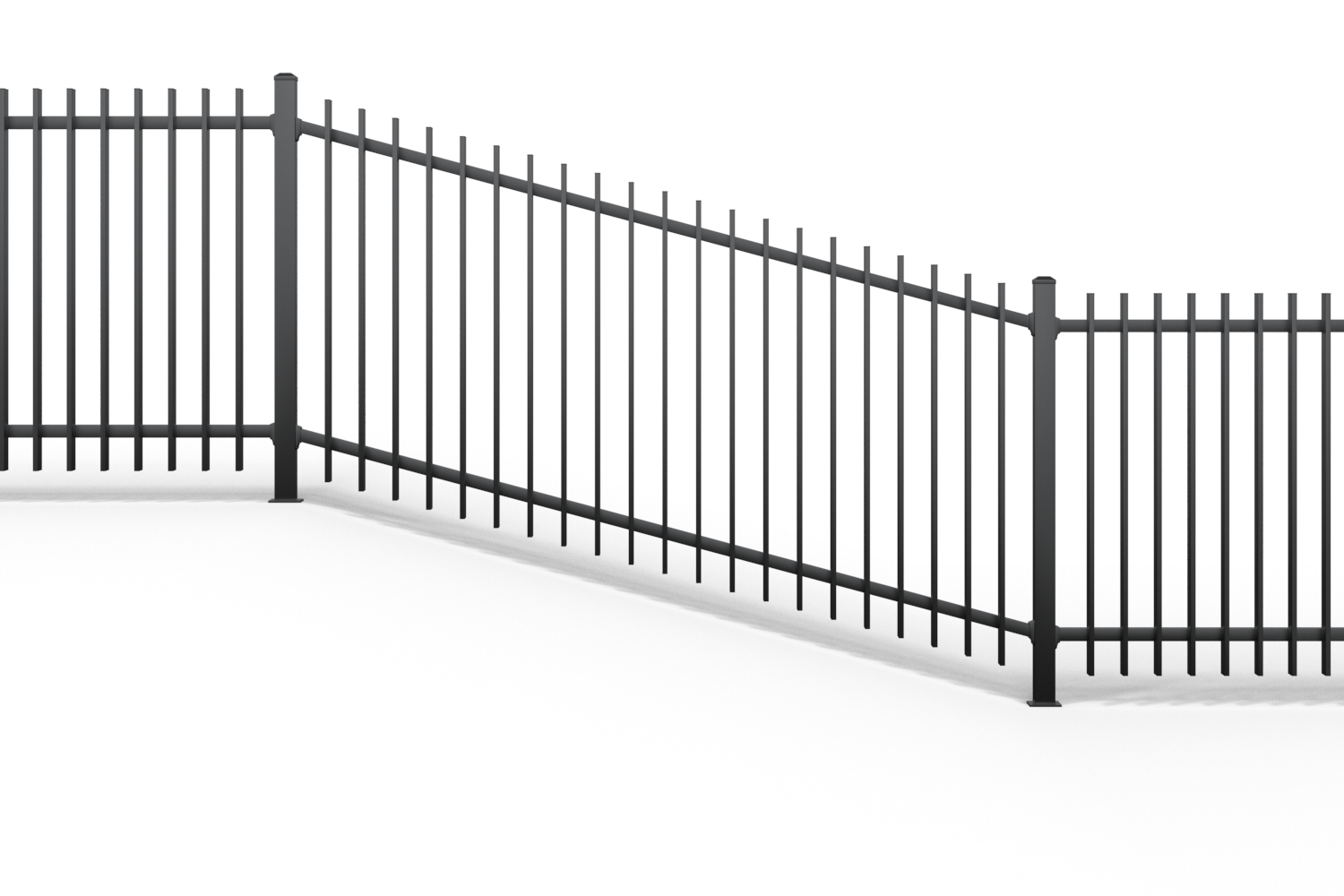

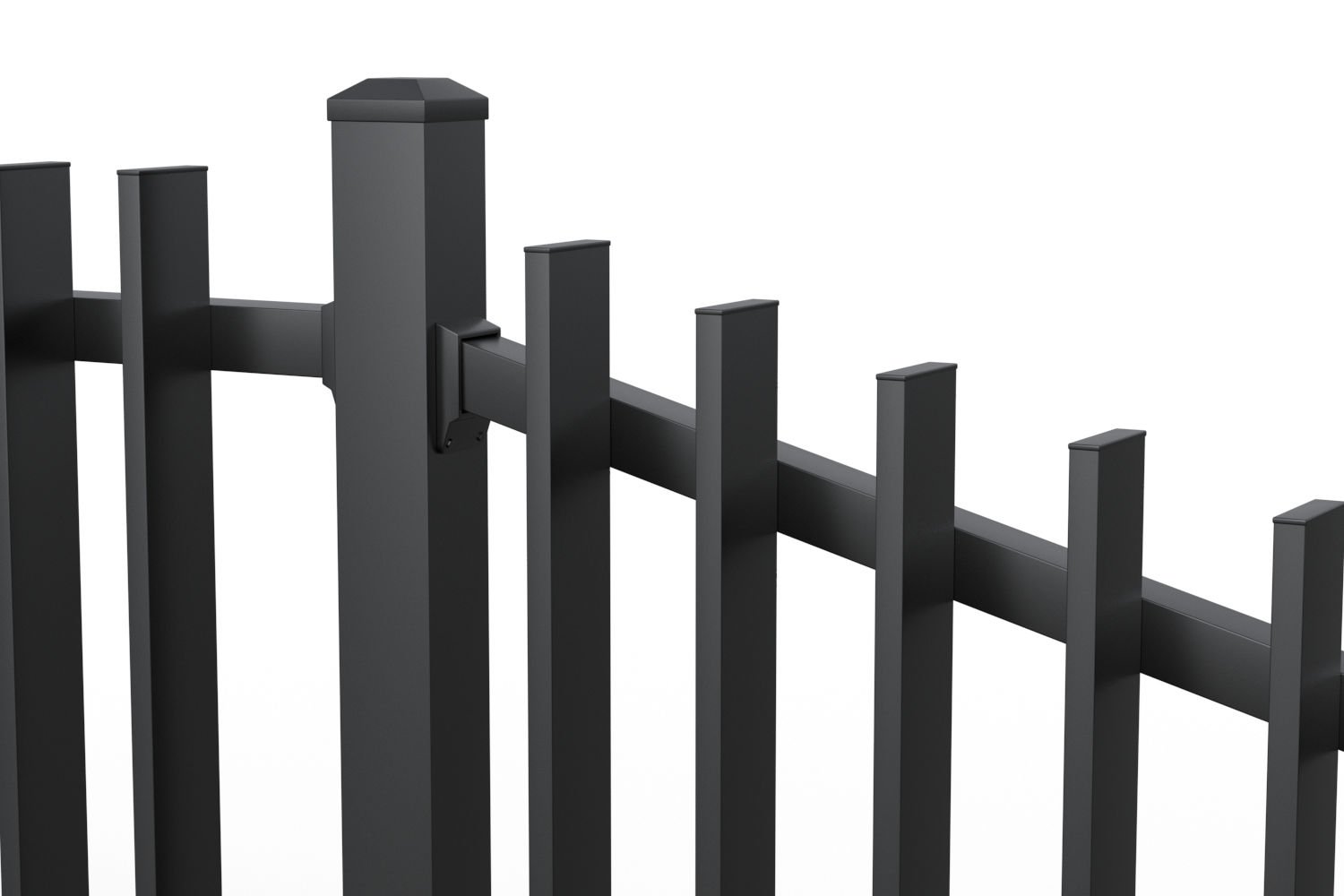

Raking Capability

The panel can rake to angles of up to 15 degrees. This makes it ideal for sloping sites and retaining walls.

Balustrade and Pool Compliant

Panels meet all requirements of the New Zealand Building Code and at 1.2m high are suitable for use in balustrade and pool fencing applications. They are issued with a PS1 compliance certificate.

  • F4/AS1: Safety from falling
  • B1/AS1: Building tolerances
  • B2/AS1: Performance requirements for building elements
  • F9/AS1: Restricting access to residential pools
  • NZS 8500:2006 Safety Barriers and Fences Around Swimming Pools, Spas and Hot Tubs
  • Manufacturers Warranty

    Our products are covered by a five year manufactures warranty. This warranty covers the structural integrity of your complete fence, gate, or balustrade and is your guarantee that our products are built to last.

    New Zealand Made

    Our panels are New Zealand made in our Silverdale factory employing the latest in CNC machine cutting and fixing technology.

    Custom Colours & Sizes

    Panels are held in stock in Satin Black but can be custom powder coated to any colour. As our panels are NZ manufactured we can accommodate custom sizes and they are available on request.

    Complementary Gates

    We offer a full range of matching gates to suit all our panel styles. Our gates are manufactured to order and can be customised to suit your requirements.
