Tongue and Groove

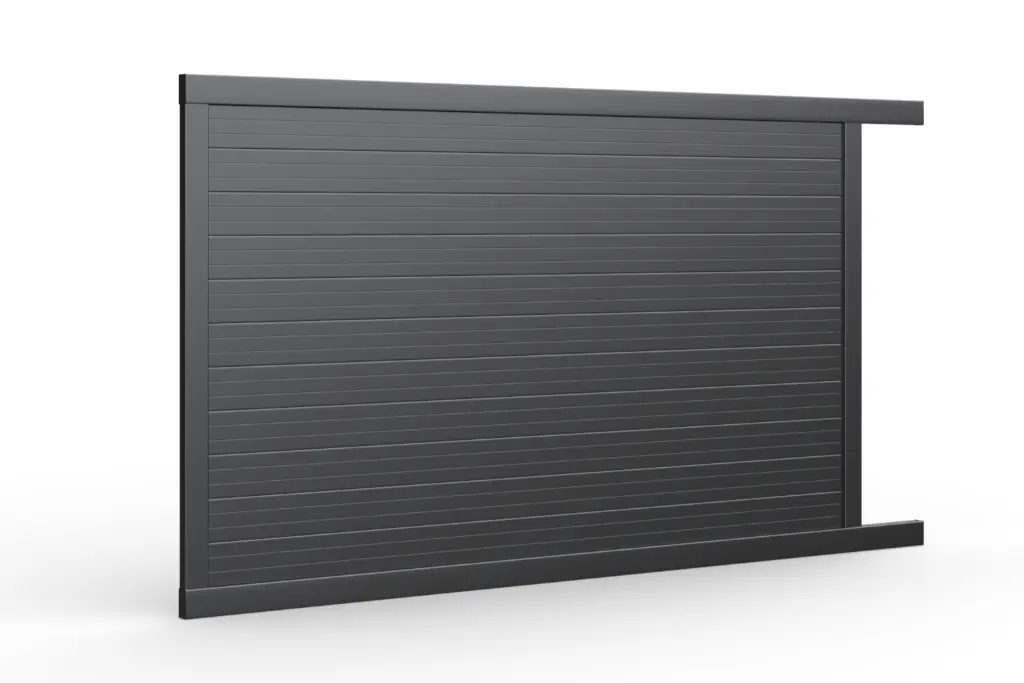

Tongue and Groove is the ultimate in privacy. A visually 100% solid gate with interlocking infill.

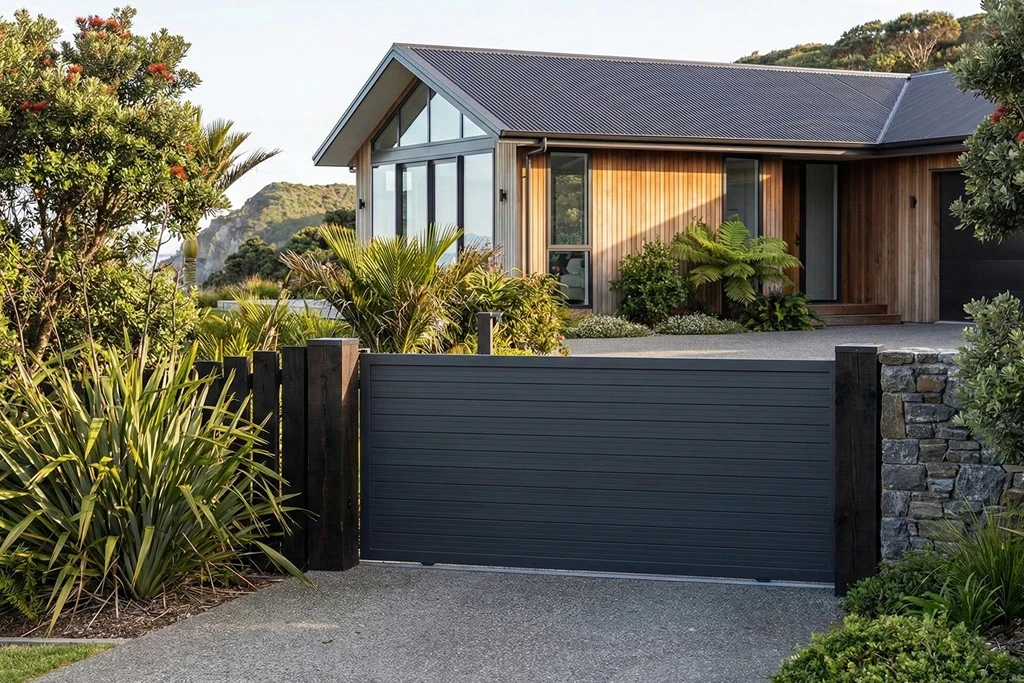

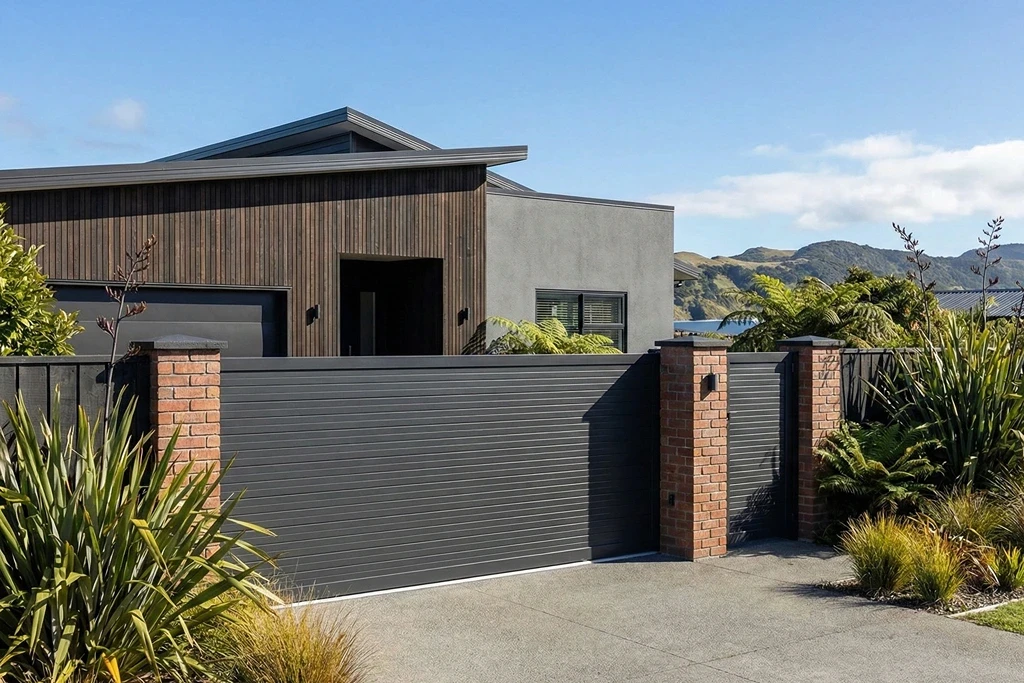

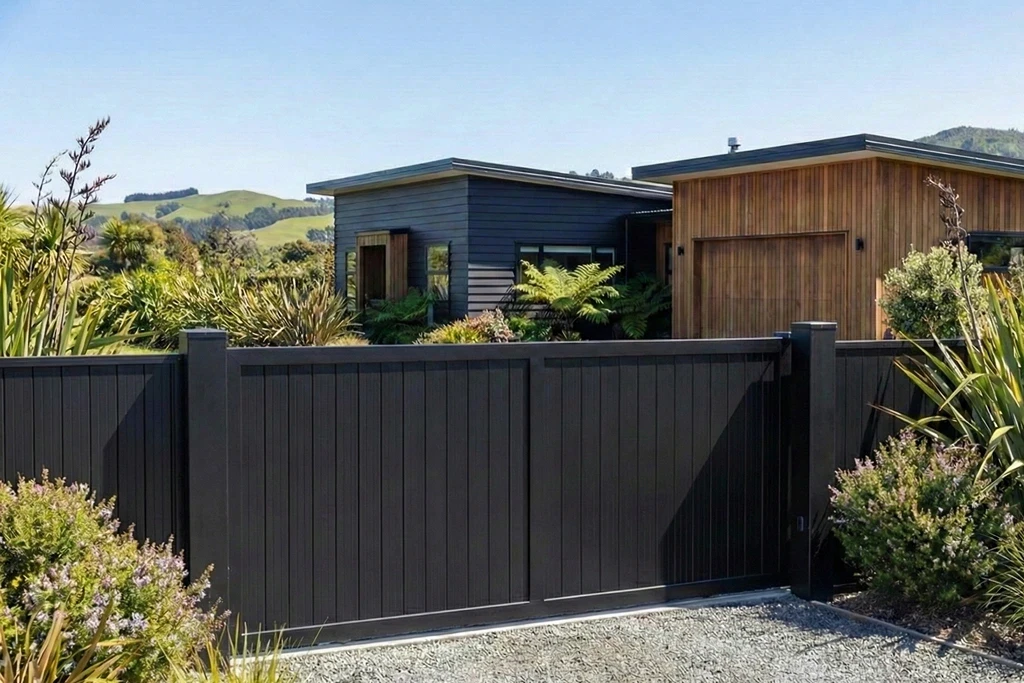

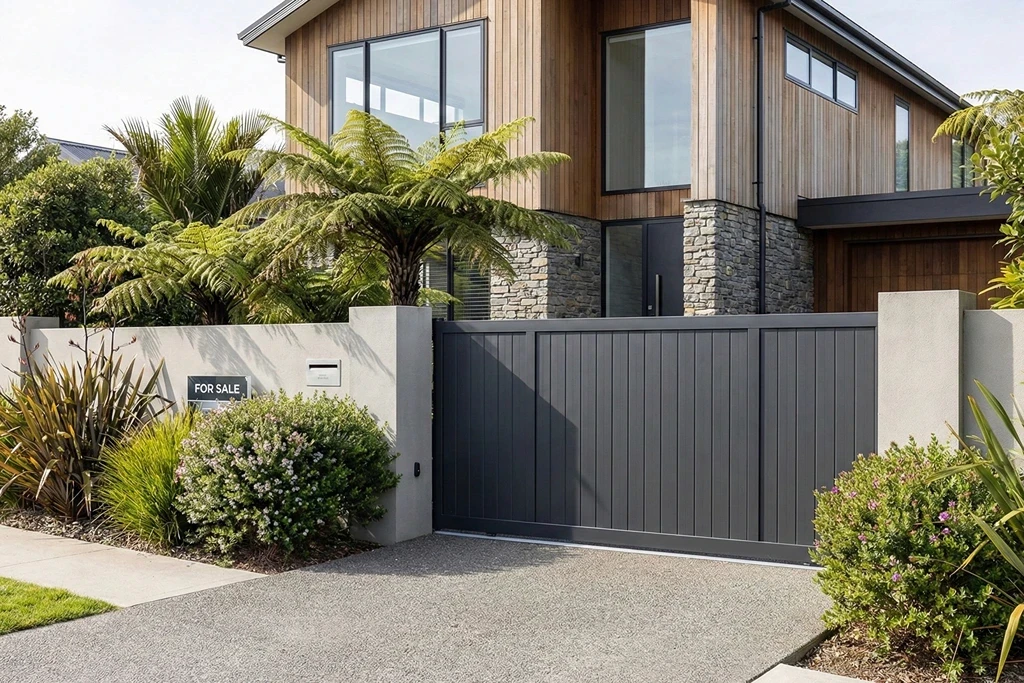

The gate is available with both horizontal and vertical infill options.
Wind Caution
Solid gates are not suitable for high wind areas. The gate is designed to be a visual barrier and does not allow high levels of wind to pass through.
For higher wind areas, consider a Louvre gate.
Manufacturer's Warranty
Our products are covered by a five year manufacturer's warranty. This warranty covers the structural integrity of your complete fence, gate, or balustrade and is your guarantee that our products are built to last.
The GateTech™ Engineered System
This gate is engineered using The Gate Group's next generation GateTech™ system.
The system is designed to be versatile, easy to install and to provide a consistent look across gates and fence panels.
Gates are precision machined in New Zealand utilising the latest in CAD design and CNC manufacturing technology. Once machined they are wrapped and dispatched from our factory as components, ready for final assembly on site.
GateTech™ is engineered to support high torsional loads in the following configurations:
Mechanism | Max Length | Max Height |
|---|---|---|
Sliding | 6m | 2m |
Single Swing | 3m | 2m |
Double Swing | 6m | 2m |
Pedestrian | 2m | 2m |
Cantilever | 6m | 2m |
Rail and Mullion Sizing
Sizings are consistent across mechanisms:
Mechanism | Profile | Load | Support |
|---|---|---|---|
Sliding | GateTech™ Engineered Profile | 100mm x 55mm x 2mm | 90mm x 45mm x 2mm |
Single Swing | GateTech™ Engineered Profile | 100mm x 55mm x 2mm | 90mm x 45mm x 2mm |
Double Swing | GateTech™ Engineered Profile | 100mm x 55mm x 2mm | 90mm x 45mm x 2mm |
Pedestrian | GateTech™ Engineered Profile | 100mm x 55mm x 2mm | 90mm x 45mm x 2mm |
Cantilever | GateTech™ Engineered Profile | 100mm x 55mm x 2mm | 90mm x 45mm x 2mm |
The GateTech™ Engineered Profile
The GateTech™ Engineered Profile used in our rails and mullions is a proprietary engineered extrusion designed to deliver high torsional strengths specifically for gate applications.
The profile vastly outperforms box section and is designed to be versatile in a variety of configurations.
