JAG
Swing Gate Motor
Linear ram motor built for larger complex gates
A heavy-duty linear ram motor built for larger or more complex swing gate installations
Premium European Design
Designed, engineered and built by Motorline Lda 100% in Europe. Motorline has a 30 year track record in gate and barrier automation.

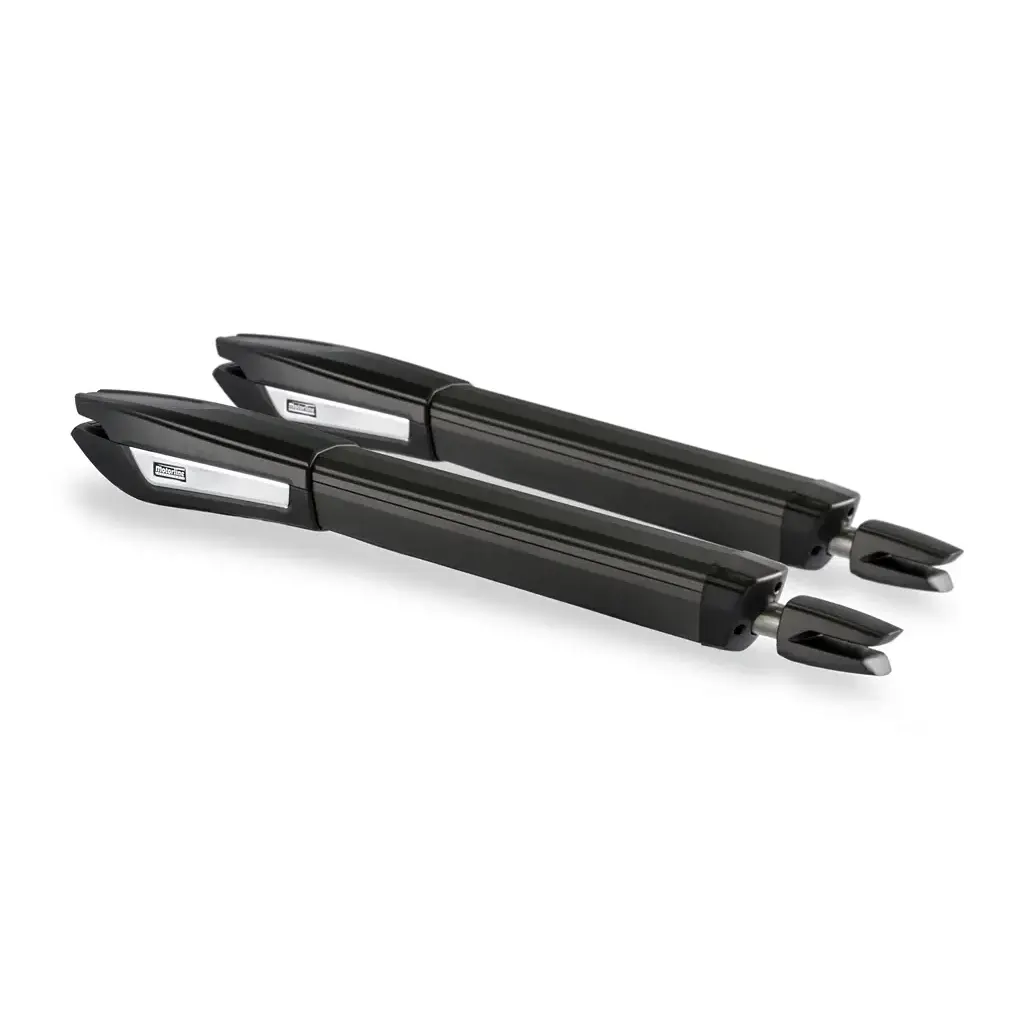

Jag is a heavy-duty linear ram actuator for residential and light commercial swing gates with leaves up to 4 metres. Available in 400mm and 600mm stroke versions, it delivers reliable push-pull action with adjustable geometry for more complex installations.
2800N for Larger Gates

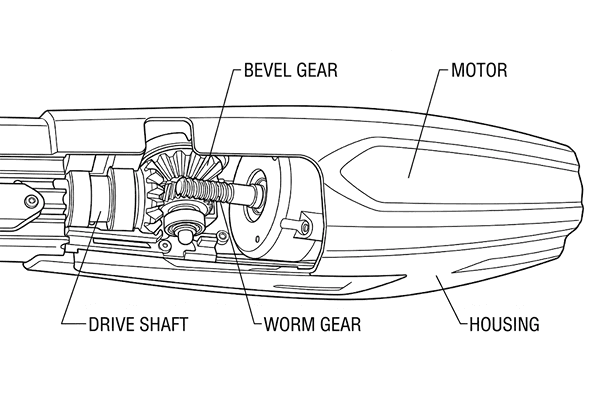

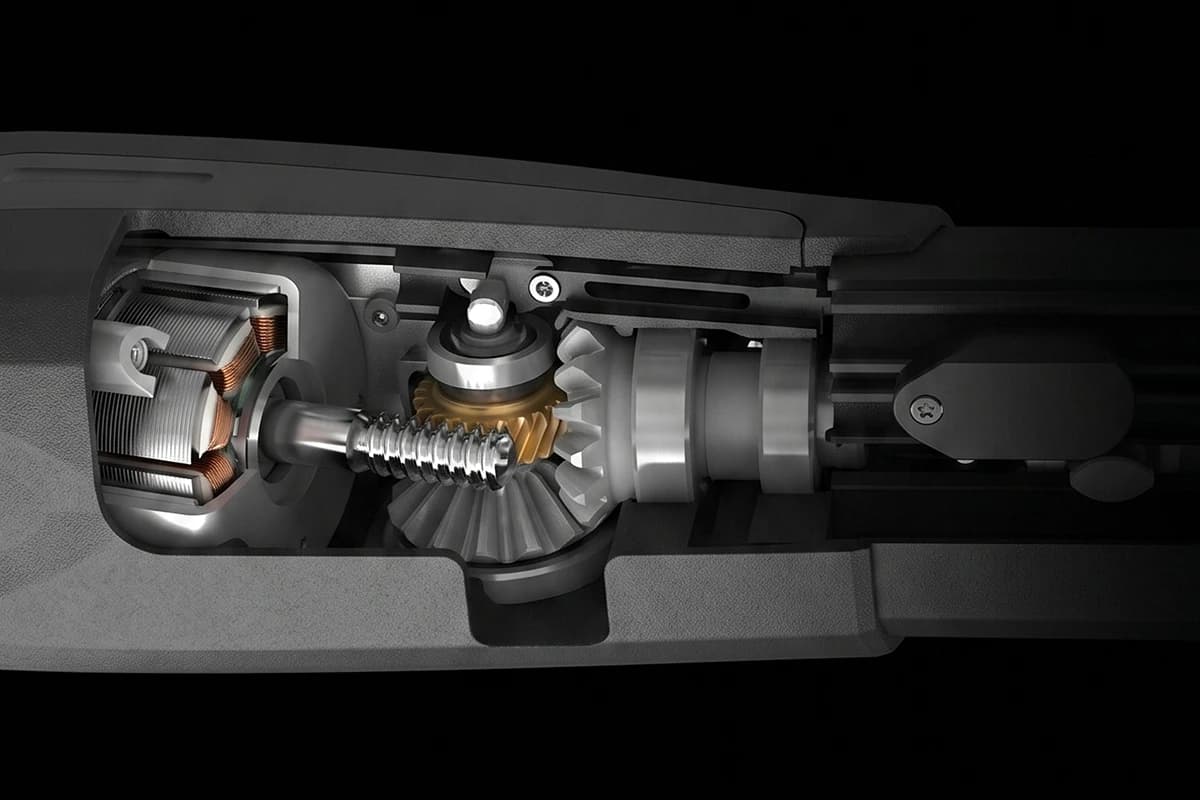

Heavy-duty screw drive rated to 2800N, built for swing gates that are too large or complex for a standard actuator.
- JAG400: leaves up to 3 metres
- JAG600: leaves up to 4 metres
- Consistent force throughout stroke
IP54 Weatherproof
Rated IP54 against dust and water jets. Installed with a slight downward inclination to prevent water entering the extension arm.
- Dust-protected internals
- Resistant to water jets
- Designed for permanent outdoor mounting
Whisper-Quiet Operation
Runs at under 50dB — quieter than a normal conversation. You'll hear the gate move, but your neighbours won't.
- Smooth, controlled movement
- Minimal vibration through the arm
- Suited to residential and light commercial
230V or 24V DC
Choose the voltage to match the site. The 24V version runs on low voltage supplied directly by the control board — no separate transformer required.
- AC 230V 50/60Hz
- DC 24V low voltage option
- Supports interior and exterior opening
Key-Slot Manual Release
Insert the release key into the dedicated slot on the motor body and turn to immediately disengage the drive — the gate can then be pushed open by hand.
- Dedicated key slot on motor body
- Gate accessible without power in seconds
- Release keys included in kit
-25°C to +75°C Range
A wider operating range than most residential actuators, with a 120°C thermal cutout that protects the motor if it runs too hot.
- Cold-climate compatible to -25°C
- Heat-tolerant to +75°C
- 120°C thermal cutout protection
What's the Difference Between Jag and Persa?
Jag
Available in JAG400 and JAG600, it scales to gates up to 4 metres and suits installations where a longer stroke or more complex geometry is needed.
- Two stroke options: 400mm and 600mm
- Handles leaves up to 4 metres (JAG600)
- Higher operating ceiling of 75°C
Persa
A more compact body at 920mm keeps the installation tidy and unobtrusive — the better choice for standard residential gates up to 3 metres where simplicity matters.
- Compact 920mm body for tighter pillar spacing
- Fixed 400mm stroke for straightforward geometry
- Handles leaves up to 3 metres
Total Control, Anywhere
Experience ultimate convenience with the Motorline smart apps, allowing you to remotely operate gates, receive real-time activity alerts, and manage user access with just a few taps from anywhere in the world.
MC52, MC62 Control Board
Simple Programming & WiFi Connectivity
Compatible with MCONNECT LINK for management and control via the MCONNECT app
Compatible with MCONNECT LINK
More convenience and efficiency:
- Adjust gate opening and closing times directly from the App
- Receive real-time alerts whenever the gate is used
- See detailed actions history
Intuitive Interface
Easily check device status via the programming display or LEDs.
Autoprogramming
Display and navigation buttons for simplified installation in just two steps.
Precise Adjustments
Full control of position and speed at any time, with specific adjustments for acceleration, deceleration, start time, deceleration distance and approach speed during opening and closing.
For the Places Where Wi-Fi Won't Reach
M200 and M250 Communicators
- Ensures a stable and secure connection through 4G LTE to ensure your motor runs smoothly.
- Advanced security and access control features provide convenience for professionals and peace of mind for users.
- The MCONTROL app available for download in app stores
What Comes in the Kit
Everything you need for a complete installation: two JAG motors, MC91BL-SC control board, two FALK remote controls, and an MF30 photocell pair.
Complete Your Gate With Extra Accessories
Tailor your installation to the site. Add battery backup for power resilience, extend remote range with an external antenna, or go fully off-grid with solar. Every accessory is designed to integrate seamlessly with the Galo system.
Specifications
| JAG400 | JAG600 | ||
|---|---|---|---|
| Power Supply | 230V | 230Vac 50/60Hz | 230Vac 50/60Hz |
| 24V | 24Vdc | 24Vdc | |
| Power | 230V | 230W | 230W |
| 24V | 80W | 80W | |
| Current | 230V | 1.3A | 1.3A |
| 24V | 3A | 3A | |
| Rotation speed | 230V | 1400 RPM | 1400 RPM |
| 24V | 1650 RPM | 1650 RPM | |
| Noise level | LpA ≤ 50dB (A) | LpA ≤ 50dB (A) | |
| Force | 2800N | 2800N | |
| Operating temperatures | -25°C to 75°C | -25°C to 75°C | |
| Thermal protection | 120°C | 120°C | |
| Protection class | IP54 | IP54 | |
| Working frequency | 230V | 25% | 25% |
| 24V | 55% | 55% | |
| Course | 400mm | 600mm | |
| Max leaf length | <3000mm | <4000mm | |
| Capacitor | 230V | 8µF | 8µF |
| Opening speed | 230V | 20mm/s | 20mm/s |
| 24V | 23.5mm/s | 23.5mm/s | |
Dimensions
Jag 400 / Jag 600
