GALO
Sliding Gate Motor
36V Brushless Design Engineered for Intensive Use
Engineered for extreme loads up to 2200kg, a brushless, oil-lubricated motor delivering high-speed performance for non-stop for heavy-duty work loads
Premium European Design
Designed, engineered and built by Motorline Lda 100% in Europe. Motorline has a 30 year track record in gate and barrier automation.
Galo is a high-speed 36V DC motor for sliding gates up to 2,200 kg. Featuring a brushless design and a lubricated gearbox, it is built for continuous, high-performance operation.
Brushless Engineering
The absence of brushes and the lubricated gearbox guarantee intensive use and high performance.
- No brush wear or replacement
- Oil-lubricated gearbox
- Built for continuous operation
Native Encoder
Allows precise control of the gate position ensuring that decelerations and movement reversals are perfectly accurate.
- Smooth Movement
- Less mechanical wear
- Durability
Integrated Battery Charger
Continuous operation even in the middle of a power outage.
- Automatic charging cycle
- Power cut protection
- Extends motor lifespan
Integrated Receiver
Capable of storing up to 200 rolling codes at 433.92 MHz.
- Up to 200 remote codes
- Rolling code security
- No external receiver needed
Ultra-Fast 450mm/s
For gates up to 600kg, the GALO600 SPEED, is the fastest motor on the market.
- Smooth Movement
- Less mechanical wear
- Durability
600kg, 1200kg, 2200kg
Galo is available in 3 models:
- GALO600 SPEED - 600kg
- GALO1200 - 1200kg
- GALO2200 - 2200kg
Superior Obstacle Detection
Powered by an advanced brushless motor and precise digital encoder, the Galo constantly monitors impact forces to instantly halt and reverse upon detecting any obstruction.
High-Speed Operation Without the Risk
Even when moving massive gates at rapid speeds, its intelligent detection seamlessly integrates with soft-start technology to guarantee industrial-grade safety and total peace of mind.
Total Control, Anywhere
Experience ultimate convenience with the Motorline smart apps, allowing you to remotely operate gates, receive real-time activity alerts, and manage user access with just a few taps from anywhere in the world.

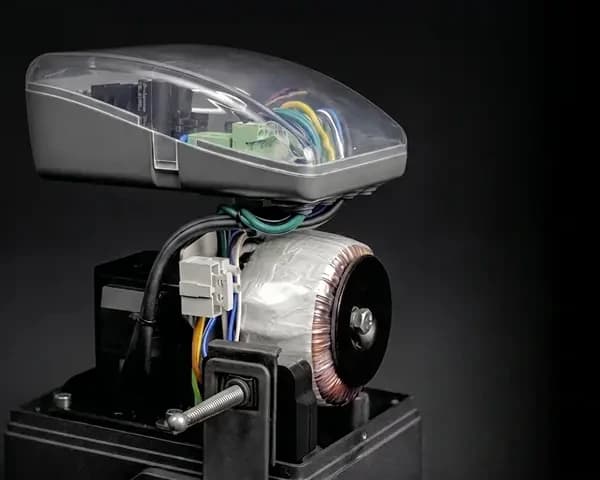

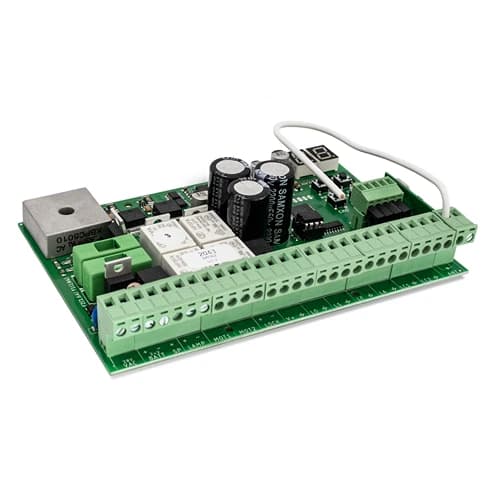

MC91BL-SC Control Board
Simple Programming & WiFi Connectivity
Compatible with MCONNECT LINK for management and control via the MCONNECT app
Compatible with MCONNECT LINK
More convenience and efficiency:
- Adjust gate opening and closing times directly from the App
- Receive real-time alerts whenever the gate is used
- See detailed actions history
Intuitive Interface
Easily check device status via the programming display or LEDs.
Autoprogramming
Display and navigation buttons for simplified installation in just two steps.
Precise Adjustments
Full control of position and speed at any time, with specific adjustments for acceleration, deceleration, start time, deceleration distance and approach speed during opening and closing.
For the Places Where Wi-Fi Won't Reach

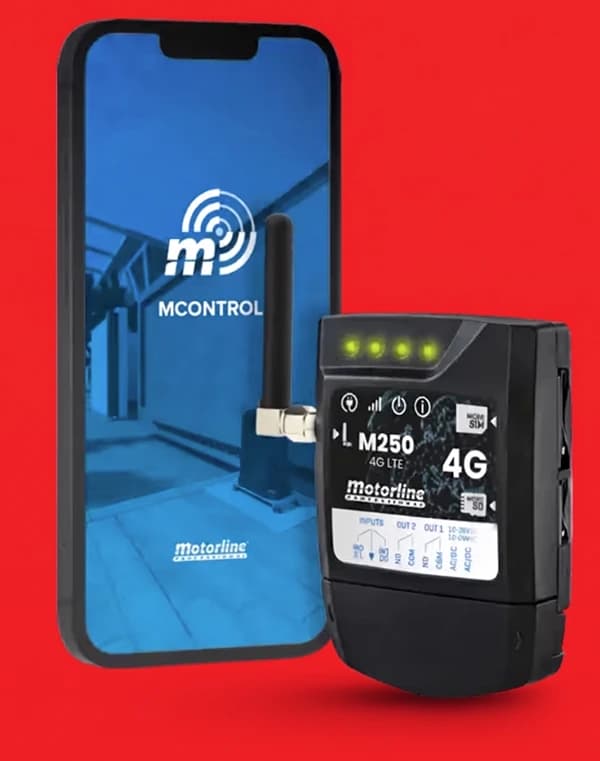

M200 and M250 Communicators
- Ensures a stable and secure connection through 4G LTE to ensure your motor runs smoothly.
- Advanced security and access control features provide convenience for professionals and peace of mind for users.
- The MCONTROL app available for download in app stores
What Comes in the Kit

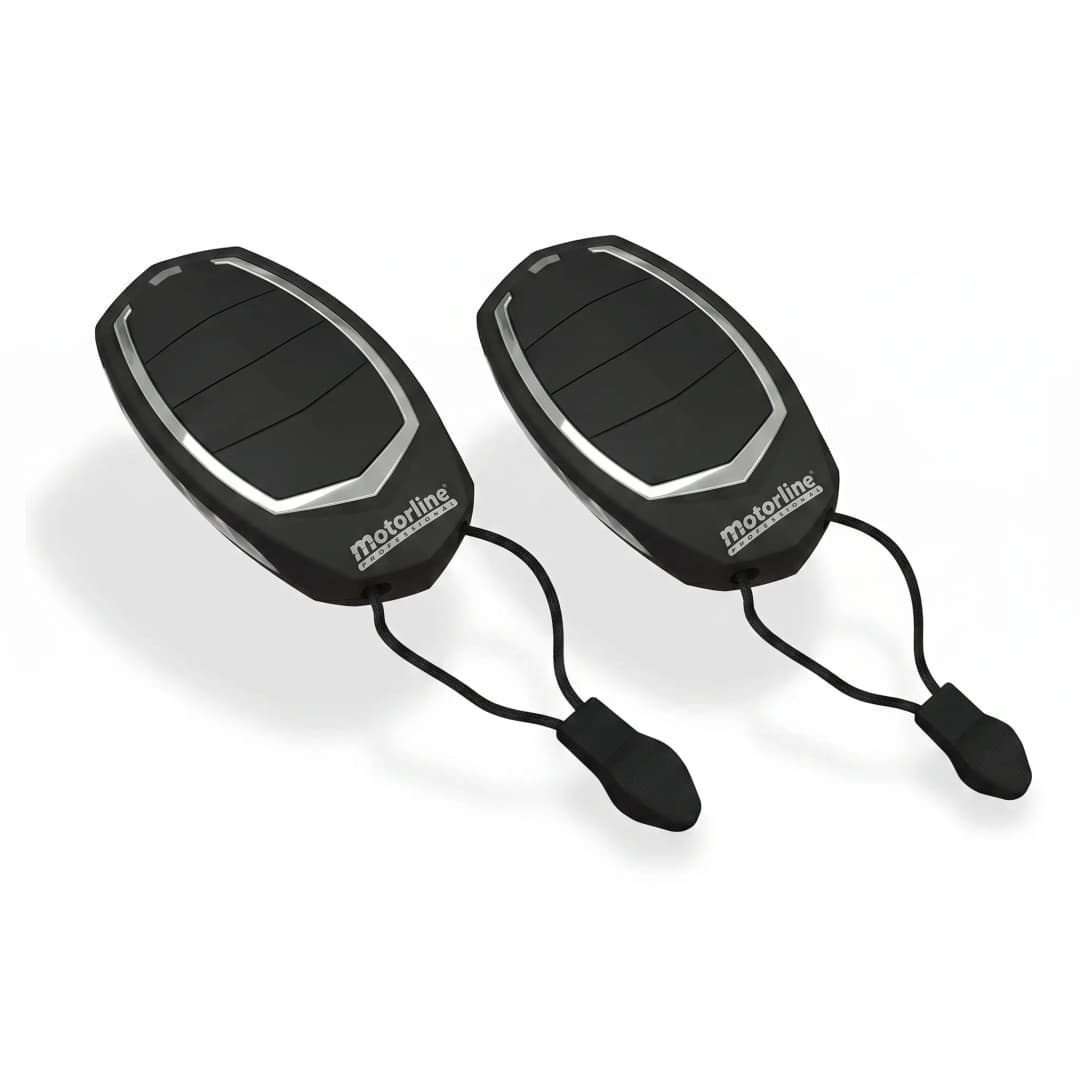

Everything you need for a complete installation: the GALO brushless motor, MC91BL-SC control board, two FALK remote controls, and an MF30 photocell pair.
Complete Your Gate With Extra Accessories
Tailor your installation to the site. Add battery backup for power resilience, extend remote range with an external antenna, or go fully off-grid with solar. Every accessory is designed to integrate seamlessly with the Galo system.
Specifications
| GALO600 SPEED | GALO1200 | GALO2200 | |
|---|---|---|---|
| Nominal current | 10A | 10A | 12A |
| Maximum absorbed current | 18A | 18A | 18A |
| Nominal Power | 360W | 360W | 430W |
| Speed | 225–450mm/s | 150–300mm/s | 150–300mm/s |
| Speed with maximum weight supported | 400mm/s | 260mm/s | 260mm/s |
| Impulse Force | 450N | 1000N | 1400N |
| Maximum gate weight | 600 Kg | 1200 Kg | 2200 Kg |
| Pinion diameter | 84mm | 84mm | 84mm |
| Power supply | 230 Vac | 50/60 Hz | ||
| Motor power | 36 Vdc | ||
| Control board power supply | 21/26 Vac | ||
| Working frequency | 55% | ||
| Motor Technology | BLDC | ||
| Motor reduction type | Irreversible | ||
| Protection class | IP44 | ||
| Noise | ≤50 dB | ||
| Operating temperature | -20°C to 55°C | ||
| Limit switch type | Magnetic/Mechanical | ||
| Encoder | Digital native encoder | ||
| Electronic control board | MC91BL-SC | ||
| Backup Batteries (Optional) | MBAT26V2000 | ||

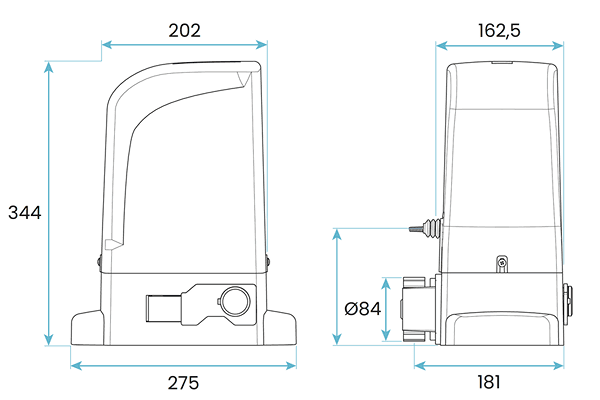

Dimensions
Galo 600 speed, Galo 1200, Galo 2400
